RNA-ATAC: scButterfly-C

The following tutorial demonstrate how to use scButterfly-C variant with data augmentation using MultiVI cluster labels.

scButterfly-C with MultiVI cluster labels data augmentation will generate synthetic paired data by randomly paired scRNA-seq and scATAC-seq of different cells with the same cluster labels. Leiden is used on the embedding space of MultiVI, which is a single-cell multi-omics data joint analysis method in Python packages scvi-tools. The supplement of these generated data will provide scButterfly a better performance of translation, but take more time for training.

Note

Most of this tutorial is same as scButterfly-B with more details of data pre-processing, model constructing, model training and evaluating. It’s prefered to see that first, because it has no different in parts mentioned above, but have more useful notes.

from scButterfly.butterfly import Butterfly
import scanpy as sc

butterfly = Butterfly()

RNA_data = sc.read_h5ad('CL_RNA.h5ad')
ATAC_data = sc.read_h5ad('CL_ATAC.h5ad')

RNA_data

AnnData object with n_obs × n_vars = 549 × 49059
    obs: 'batch', 'cell_type'

ATAC_data

AnnData object with n_obs × n_vars = 549 × 157358
    obs: 'batch', 'cell_type'
    var: 'chrom'

from scButterfly.split_datasets import *
id_list = five_fold_split_dataset(RNA_data, ATAC_data)
train_id, validation_id, test_id = id_list[4]

butterfly.load_data(RNA_data, ATAC_data, train_id, test_id, validation_id)

[INFO] Butterfly: successfully load in data with

RNA data:
AnnData object with n_obs × n_vars = 549 × 49059
    obs: 'batch', 'cell_type'

ATAC data:
AnnData object with n_obs × n_vars = 549 × 157358
    obs: 'batch', 'cell_type'
    var: 'chrom'

butterfly.data_preprocessing()

[INFO] RNA preprocessing: normalize size factor.
[INFO] RNA preprocessing: log transform RNA data.
[INFO] RNA preprocessing: choose top 3000 genes for following training.
[INFO] ATAC preprocessing: binarizing data.
[INFO] ATAC preprocessing: filter out peaks appear lower than 0.5% cells.
[INFO] ATAC preprocessing: TF-IDF transformation.
[INFO] ATAC preprocessing: normalizing data.

butterfly.ATAC_data_p.var.chrom

chr1_10292_10791            chr1
chr1_713838_714337          chr1
chr1_762665_763164          chr1
chr1_778116_778615          chr1
chr1_805064_805563          chr1
                            ...
chr9_140916730_140917229    chr9
chr9_140947829_140948328    chr9
chr9_140948839_140949338    chr9
chr9_140960343_140960842    chr9
chr9_140995395_140995894    chr9
Name: chrom, Length: 157358, dtype: category
Categories (22, object): ['chr1', 'chr2', 'chr3', 'chr4', ..., 'chr19', 'chr20', 'chr21', 'chr22']

chrom_list = []
last_one = ''
for i in range(len(butterfly.ATAC_data_p.var.chrom)):
    temp = butterfly.ATAC_data_p.var.chrom[i]
    if temp[0 : 3] == 'chr':
        if not temp == last_one:
            chrom_list.append(1)
            last_one = temp
        else:
            chrom_list[-1] += 1
    else:
        chrom_list[-1] += 1

print(chrom_list, end="")

[16272, 7430, 8797, 7922, 2823, 4194, 4451, 7697, 8746, 2602, 6184, 11059, 4589, 1869, 5247, 9248, 6085, 9806, 8592, 8434, 8448, 6863]

sum(chrom_list)

157358

Data augmentation with cluster labels from MultiVI embeddings

Here we choose the parameter aug_type="MultiVI_augmentation", and scButterfly-C will automatically train a MultiVI model first, and then generate randomly paired data as supplement for training.

butterfly.augmentation(aug_type="MultiVI_augmentation")

[INFO] Butterfly: using data amplification with MultiVI cluster labels.
Global seed set to 0
 LightningDeprecationWarning:/home/atac2rna/anaconda3/envs/bt/lib/python3.9/site-packages/pytorch_lightning/utilities/warnings.py:53: pytorch_lightning.utilities.warnings.rank_zero_deprecation has been deprecated in v1.6 and will be removed in v1.8. Use the equivalent function from the pytorch_lightning.utilities.rank_zero module instead.
 LightningDeprecationWarning:/home/atac2rna/anaconda3/envs/bt/lib/python3.9/site-packages/pytorch_lightning/utilities/warnings.py:58: The `pytorch_lightning.loggers.base.rank_zero_experiment` is deprecated in v1.7 and will be removed in v1.9. Please use `pytorch_lightning.loggers.logger.rank_zero_experiment` instead.
[INFO] Butterfly: no trained model find, train MultiVI model first ...
No GPU/TPU found, falling back to CPU. (Set TF_CPP_MIN_LOG_LEVEL=0 and rerun for more info.)
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs
 LightningDeprecationWarning:/home/atac2rna/anaconda3/envs/bt/lib/python3.9/site-packages/pytorch_lightning/trainer/configuration_validator.py:267: The `Callback.on_epoch_end` hook was deprecated in v1.6 and will be removed in v1.8. Please use `Callback.on_<train/validation/test>_epoch_end` instead.
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0,1,2,3]

Epoch 466/500:  93%|█████████████████████████████████████████████████████████████████████████████████████████████████████████████        | 466/500 [04:08<00:18,  1.88it/s, loss=4.51e+04, v_num=1]
Monitored metric reconstruction_loss_validation did not improve in the last 50 records. Best score: 107654.883. Signaling Trainer to stop.

butterfly.construct_model(chrom_list=chrom_list)

[INFO] Butterfly: successfully construct butterfly model.

Data augmentation will take more time for training.

butterfly.train_model()

[INFO] Butterfly: training butterfly model ...
[INFO] Trainer: RNA pretraining ...
RNA pretrain: 100%|█████████████████████| 100/100 [03:51<00:00,  2.32s/it, train=0.4515, val=0.3990]
[INFO] Trainer: ATAC pretraining ...
ATAC pretrain: 100%|████████████████████| 100/100 [05:09<00:00,  3.10s/it, train=0.2360, val=0.2358]
[INFO] Trainer: Combine training ...
Combine training: 100%|█████████████████| 200/200 [12:50<00:00,  3.85s/it, train=1.1089, val=0.8175]

A2R_predict, R2A_predict = butterfly.test_model()

[INFO] Butterfly: testing butterfly model ...
[INFO] Tester: get predicting ...
RNA to ATAC predicting...: 100%|██████████████████████████████████████| 2/2 [00:00<00:00,  3.71it/s]
ATAC to RNA predicting...: 100%|██████████████████████████████████████| 2/2 [00:00<00:00,  2.38it/s]
[INFO] Tester: calculate neighbors graph for following test ...

from scButterfly.calculate_cluster import calculate_cluster_index

scButterfly-C usually get a better performance compare to scButterfly-B. However, the performance of MultiVI augmentation often slightly worse than data augmentation with cell-type labels. We recommend the scButterfly-T when there has RNA_data.obs["cell_type"] and ATAC_data.obs["cell_type"].

sc.tl.tsne(A2R_predict)
sc.tl.leiden(A2R_predict)

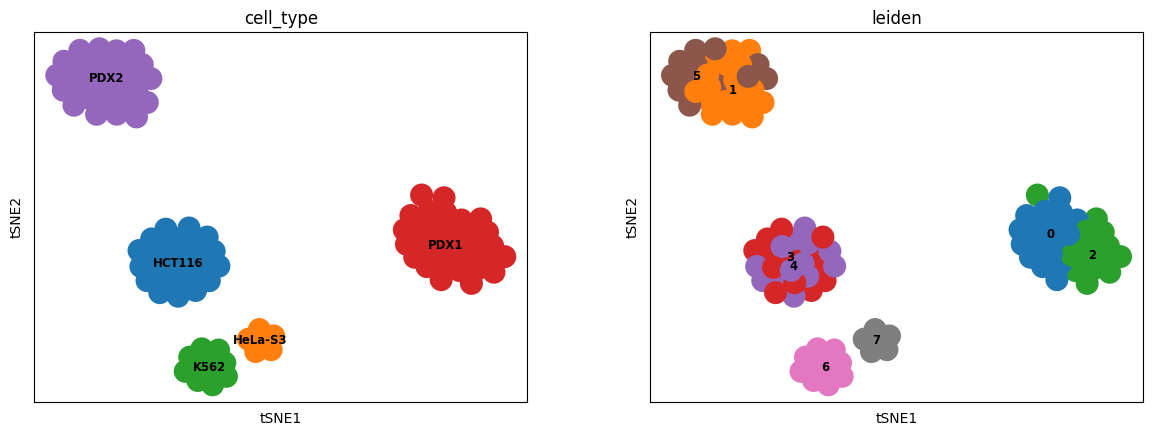

sc.pl.tsne(A2R_predict, color=['cell_type', 'leiden'], legend_loc='on data', legend_fontsize='small')

ARI, AMI, NMI, HOM = calculate_cluster_index(A2R_predict)
print('ATAC to RNA:\nARI: %.3f, \tAMI: %.3f, \tNMI: %.3f, \tHOM: %.3f' % (ARI, AMI, NMI, HOM))

ATAC to RNA:
ARI: 0.616,     AMI: 0.819,     NMI: 0.834,     HOM: 1.000,     COM: 0.716

sc.tl.tsne(R2A_predict)
sc.tl.leiden(R2A_predict)

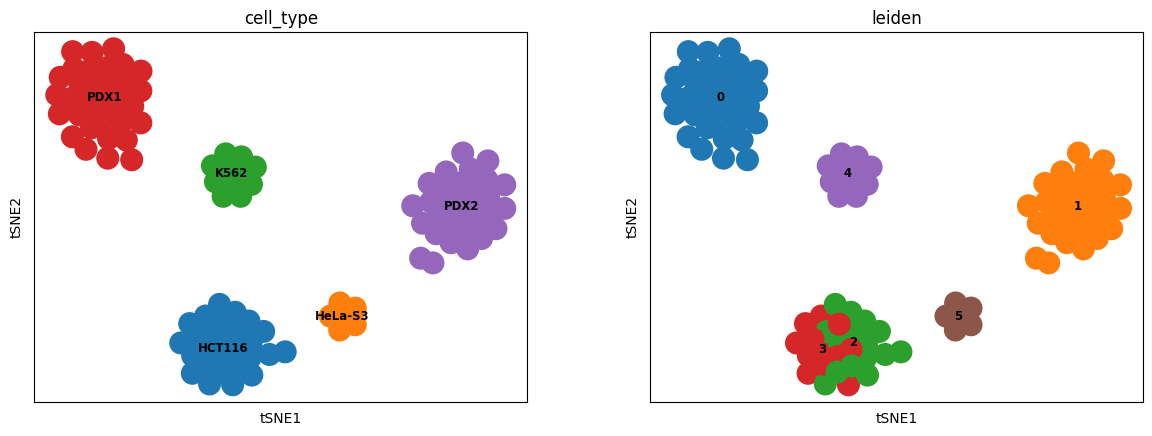

sc.pl.tsne(R2A_predict, color=['cell_type', 'leiden'], legend_loc='on data', legend_fontsize='small')

ARI, AMI, NMI, HOM = calculate_cluster_index(R2A_predict)
print('RNA to ATAC:\nARI: %.3f, \tAMI: %.3f, \tNMI: %.3f, \tHOM: %.3f' % (ARI, AMI, NMI, HOM))

RNA to ATAC:
ARI: 0.914,     AMI: 0.941,     NMI: 0.945,     HOM: 1.000,     COM: 0.895
